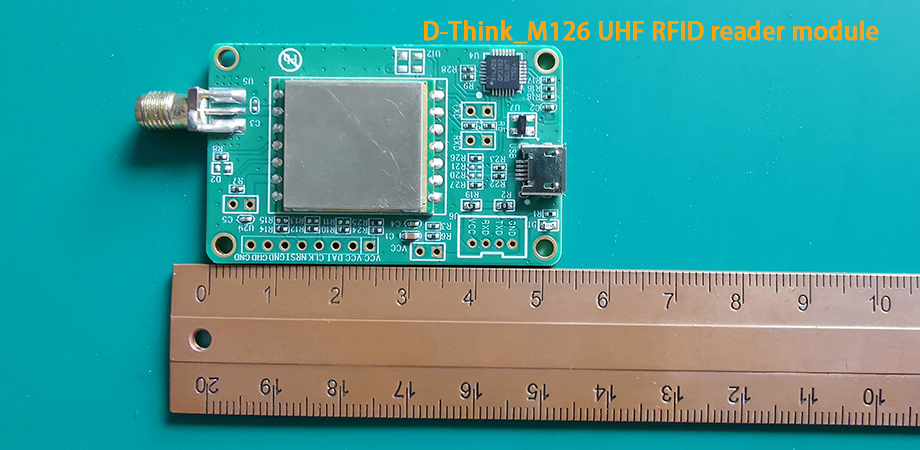

D-Think_M126 UHF RFID reader module

D-Think_M126
0.3Kg

$60.00


Contact us for more information
6 reward points
Qty: Unit(s)


  • Add to WishLists
  • Add a price reduction notification
  • Add a product notice of arrival




  • Description
  • Estimate Shipping Costs
  • Reviews(0)
  • After-sales service
Overview
Quick Details
 Place of Origin:
  Guangdong, China  Brand Name:  D-Think
 Frequency:  860-960mhz, 860-960mhz  Protocol:  ISO 18000-6C/EPC C1G2
 Product Name:
  UHF RFID Module  Model:  D-Think_M126
 Reading Range:  0-3m  Host interface:
  Uart
 Read Speed:  50pcs/s
  Power:
  DC 3.5-5V

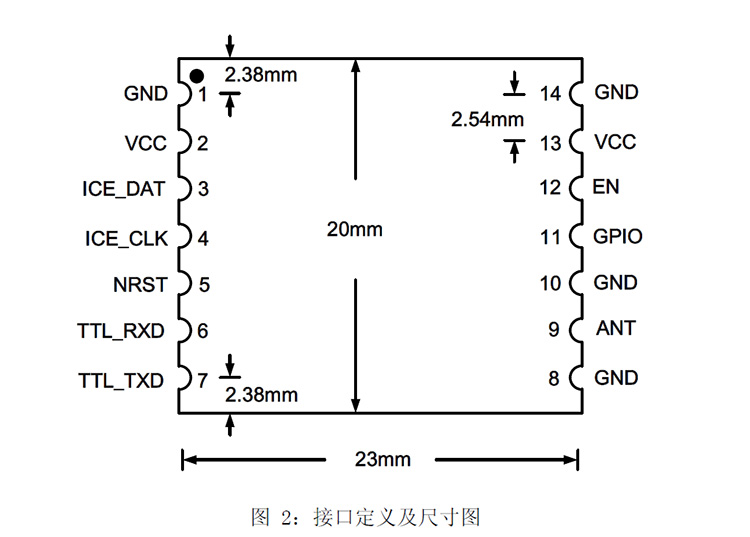

 Dimensions:  23×20×3mm  RF Power:  26dBm±1dB（MAX）
 Antenna Port:
  External welding  Feature:  Support EPC, TID and USER inventory





Packaging & Delivery

 Selling Units:  Single item
 Package size per batch:  150×100×50mm
 Gross weight per batch:  0.500 kg
 Package Type:  1 piece in one paper box





D-Think_ The M126 low-power UHF read-write module supports iso18000-6c / EPC C1G2 protocol. Users can communicate with their own devices through the rs232-ttl pin on their interface. Its wide power supply range (dc3.6v ~ 5.5V) and configurable GPIO interface can provide users with more choices. With low power consumption and small volume, it is very suitable for embedding into handheld mobile devices and short-distance applications, such as short-distance handheld, mobile phone accessories, card issuers, etc.

Features

•  Support iso18000-6c / EPC C1G2 standard protocol
•  Standby current less than 10mA
•  Support sleep function
•  AIP library functions and demo suite are provided



Technical Parameters

Operating Voltage

DC 3.5V – 5 V

Standby state current

<80mA (EN pin high level)

Sleep state current

<100uA (EN pin low level)

Working current

180mA @ 3.5V (26 dBm Output，25°C)。

110mA @ 3.5V (18 dBm Output，25°C)。

Start Time

<100mS。

Operating temperature

- 20 °C   -    + 70    °C

storage temperature

- 20 °C   -    + 85    °C

Working humidity

< 95% ( + 25 °C)

Air interface protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Working spectrum range

840-960MHZ

Work area support

US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China Japan Korea Malaysia Taiwan

Output power range

18-26 dBm

Output power accuracy

+/- 1dB

Output power flatness

+/- 0.2dB

Receiving Ling Min degrees

< -70dBm

Inventory label peak speed

> 50 sheets/sec

Label buffer memory area

200 labels @ 96 bit EPC

Label RSSI

support

Communication Interface

Uart interface

Communications wave special rate

115200 bps (default and recommended) 38400bps

Cooling method

Air cooling (no need for external heat sink)



D-Think inc. is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website www.rfidshop.net or email us at iot@D-Think.cn, we will contact you as soon as possible.
Remark:
1. Specifications are subject to change, please pay attention to our latest one.
2. According to the relevant provisions of the logistics company, more than 1.5KG not send surface mail or registered mail, can only choose courier.
3.D-Think inc. reserve the right to the final interpretation of the above terms.
